Electrohydrodynamic Jet (E-Jet) Printing Machine
E-jet printing is a micro/nano-manufacturing process that uses an electric field to induce fluid jet printing through micro/nano-scale nozzles.

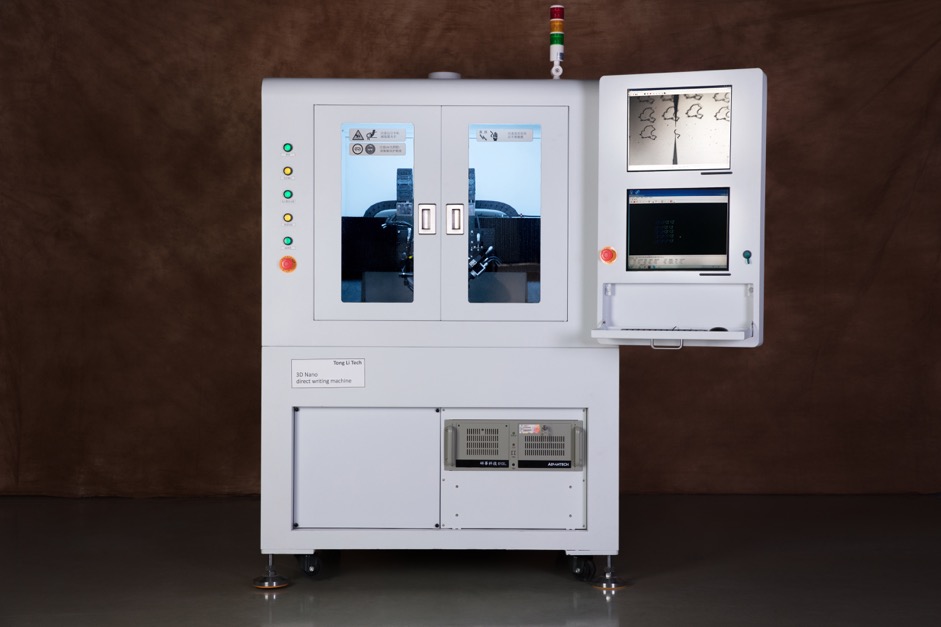

TONG LI’s 3D Electrohydrodynamic Printing Machine can be used for printing micron & sub-micron scale droplets by using a wide variety of inks, it has the ability to directly pattern biological materials for biosensors, drop-on-demand functionality for chemical mixing and sensor fabrication, and high-resolution printing for printed electronics.
- Hundreds polymers, metal & oxides, biological materials, and others can be used.
- Normal needles:All standard needles can be used.
- Micro-needles: All sizes between ø1~100µm can be made and supplied.
- High precision X-Y-Z 3D moving stage. (100nm resolution)
- Can Print dots, lines with ø100nm~40µm.
- Fast Continuous Printing.
- Drop on Demand (DOD) Fast Printing.
- Online Microscope Vision System
Items |
Specification |
Printing Power System |
AC-DC high voltage supply device, >4KV. For solutions |
Software of Power Controlling System |
|
Usable Raw Materials |
Metallic Inks (eg. Ag Inks) |
Polymer solutions |
|
Biological materials |
|
Other solutions |
|
Vision System & Positioning System |
Positioning system: Microscope A |
Vision system: Microscope B |
|
LED light |
|
Online Display |
|
Collector |
Porous Table: Made from Aluminum |
Heating: Room temp. ~ 60℃ |
|
Vacuum pump |
|
Needles |
Standard needles |
Glass needles ranging from 8µm to 100µm |
|
High-resolution X-Y-Z 3D moving stage |
Marble stage + Gantry structure |
Max. Travel of X & Y axis:400mm*400mm. Resolution: 0.1µm,Repeatability: ±0.2µm. |
|
X & Y: Linear actuator |
|
Max. Travel of Z axis, 100mm. Resolution: 0.1µm,Repeatability: ±0.2µm. |
|
Z: Servo Motor |
|
Max. Speed: X, Y ≤ 0.8m/s; Z ≤ 0.5m/s |
|
Max Load: X ≤ 5KG, Y ≤ 5KG; Z ≤ 3 KG |
|
Intelligent Motion control soft |
|
Software |
Built-in CAD software |
Auto copy & print function |
|
Layer height control system |
|
A & B layers shifting function |
|
Computer |
Professional Industrial Computer |
Options |
UV curing system |
Heating system |
|
Humidity control system |
|
Safety |
Emergency Stop |
Grounded Chamber |
